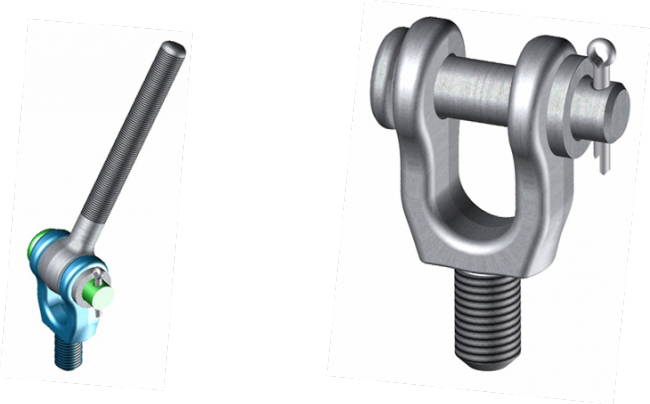

Domaine d’utilisation
Toutes applications en construction mécanique.
Caractéristiques techniques
Version acier :
En C22 selon norme NF-EN 10083
Finition grenaillé ou (option) zingué blanc
Version acier Inoxydable :
Acier inoxydable A4 selon norme NF EN 10 088
Finition : passivé
| D | D1 | D2 | A | B | C | E | L | M | Référence Colin Milas | |||
| Chape seule | Chape + axe + rondelle + goupille | |||||||||||
| Acier | Acier inoxydable | Acier | Acier inoxydable | |||||||||
| M8 | 16 | 8,25 | 22 | 22 | 10,5 | 13 | 15 | 30 | 43-03-008-S | 43-03-008-IN | 43-03-008 | 43-03-008-IN |
| M10 | 20 | 10,25 | 27 | 25 | 13,5 | 15 | 19 | 33 | 43-03-010 | 43-03-010-IN | 43-03-010 | 43-03-010-IN |
| M12 | 24 | 12,25 | 31 | 30 | 15,5 | 17 | 20 | 40 | 43-03-012 | 43-03-012-IN | 43-03-012 | 43-03-012-IN |
| M16 | 32 | 16,25 | 40 | 36 | 20,5 | 20 | 20 | 50 | 43-03-016 | 43-03-016-IN | 43-03-016 | 43-03-016-IN |
| M20 | 40 | 20,25 | 51 | 59 | 25,5 | 25 | 25 | 75 | 43-03-020 | 43-03-020-IN | 43-03-020 | 43-03-020-IN |
| M24 | 48 | 24,25 | 60 | 64 | 30 | 30 | 26 | 84 | 43-03-024 | 43-03-024-IN | 43-03-024 | 43-03-024-IN |
| M30 | 60 | 30,25 | 72 | 72 | 37 | 38 | 29 | 96 | 43-03-030 | 43-03-030-IN | 43-03-030 | 43-03-030-IN |
| M36 | 72 | 36,25 | 87 | 80 | 44 | 44 | 32 | 108 | 43-03-036 | 43-03-036-IN | 43-03-036 | 43-03-036-IN |
| M39 | 78 | 39,25 | 93 | 88 | 48 | 46 | 35 | 120 | 43-03-039 | 43-03-039-IN | 43-03-039 | 43-03-039-IN |
