Domaine d’utilisation
Toutes applications en construction mécanique.

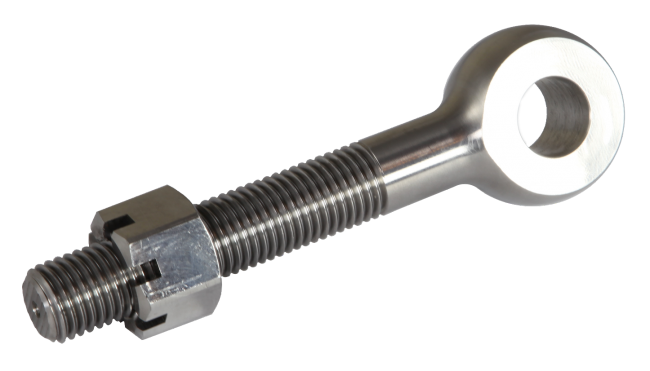

Caractéristiques techniques
Produits fabriqués à la demande (Pas de stock).
Selon les exigences clients nous fabriquons ces écrous dans toutes les matières souhaitées ( Acier faiblement ou fortement allié, acier inoxydable, acier réfractaire etc…)

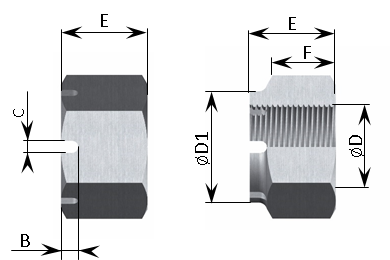

| ØD | Pas | Côte sur plats | E | C | w | Référence écrou HK | D1 | F | Référence écrou HK dégagé |
| M6 | 1 | 10 | 7.5 | 2 | 2,5 | 42-06-006 | |||
| M8 | 1.25 | 13 | 9.5 | 2.5 | 3 | 42-06-008 | |||
| M10 | 1.50 | 17 | 12 | 2.8 | 4 | 42-06-010 | |||
| M12 | 1.75 | 19 | 15 | 3.5 | 5 | 42-06-012 | 17 | 10 | 42-06-012-D |
| M16 | 2 | 24 | 19 | 4.5 | 6 | 42-06-016 | 22 | 13 | 42-06-016-D |
| M20 | 2.5 | 30 | 22 | 4.5 | 6 | 42-06-020 | 28 | 16 | 42-06-020-D |
| M24 | 3 | 36 | 27 | 5.5 | 8 | 42-06-024 | 34 | 19 | 42-06-024-D |
| M27 | 3 | 41 | 30 | 5.5 | 8 | 42-06-027 | 38 | 21 | 42-06-027-D |
| M30 | 3.5 | 46 | 33 | 7 | 9 | 42-06-030 | 42 | 24 | 42-06-030-D |
| M33 | 3.5 | 50 | 35 | 7 | 9 | 42-06-033 | 46 | 36 | 42-06-033-D |
| M36 | 4 | 55 | 38 | 7 | 9 | 42-06-036 | 50 | 29 | 42-06-036-D |
| M39 | 4 | 60 | 40 | 7 | 9 | 42-06-039 | 55 | 32 | 42-06-039-D |
| M42 | 4.5 | 65 | 46 | 9 | 12 | 42-06-042 | 58 | 34 | 42-06-042-D |
| M45 | 4.50 | 70 | 48 | 9 | 12 | 42-06-045 | 62 | 36 | 42-06-045-D |
| M48 | 5 | 75 | 50 | 9 | 12 | 42-06-048 | 65 | 38 | 42-06-048-D |
| M52 | 5 | 80 | 54 | 9 | 12 | 42-06-052 | 70 | 40 | 42-06-052-D |
| M56 | 5.5 | 85 | 57 | 9 | 12 | 42-06-056 | 75 | 42 | 42-06-056-D |
| M64 | 6 | 95 | 66 | 11 | 15 | 42-06-064 | 85 | 49 | 42-06-064-D |
| M72 | 6 | 105 | 73 | 11 | 15 | 42-06-072 | 95 | 54 | 42-06-072-D |
| M80 | 6 | 115 | 82 | 11 | 15 | 42-06-080 | 105 | 61 | 42-06-080-D |
| M90 | 6 | 130 | 92 | 14 | 20 | 42-06-090 | 120 | 68 | 42-06-090-D |
| M100 | 6 | 145 | 100 | 14 | 20 | 42-06-100 | 135 | 75 | 42-06-100-D |
