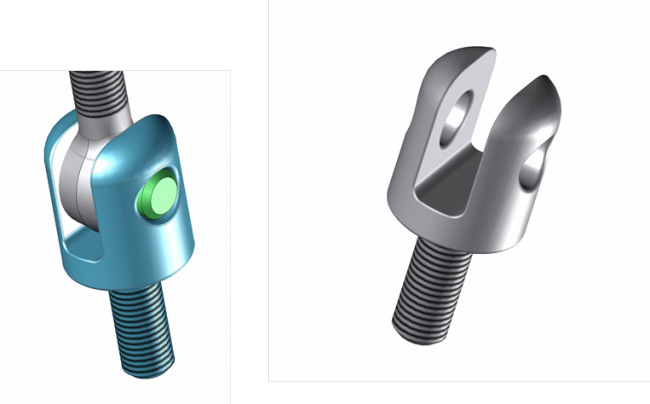

Domaine d’utilisation
Toutes applications en construction mécanique.
Caractéristiques techniques
Version acier :
En C22 selon norme NF-EN 10083
Finition grenaillé ou (option) zingué blanc
Version acier Inoxydable :
Acier inoxydable A4 selon norme NF EN 10 088
| D | D1 | D2 | A | B | C | E | F | Référence Colin Milas | |
| Version acier | Version acier inoxydable | ||||||||
| 8 | M8 | 20 | 11 | 15 | 23 | 11 | 20 | 43-05-008 | 43-05-008-IN |
| 10 | M10 | 25 | 13 | 18 | 28 | 14 | 25 | 43-05-010 | 43-05-010-IN |
| 12 | M12 | 30 | 16 | 22 | 34 | 16 | 30 | 43-05-012 | 43-05-012-IN |
| 16 | M16 | 40 | 20 | 28 | 44 | 21 | 40 | 43-05-016 | 43-05-016-IN |
| 20 | M20 | 50 | 25 | 35 | 55 | 26 | 50 | 43-05-020 | 43-05-020-IN |
| 24 | M24 | 60 | 29 | 41 | 65 | 30 | 60 | 43-05-024 | 43-05-024-IN |
| 30 | M30 | 75 | 34 | 49 | 79 | 37 | 75 | 43-05-030 | 43-05-030-IN |
| 36 | M36 | 90 | 42 | 57 | 93 | 44 | 90 | 43-05-036 | 43-05-036-IN |
| 39 | M39 | 97 | 45 | 60 | 99 | 48 | 97 | 43-05-039 | 43-05-039-IN |
