“ Creative hot forging ” |
|
Caractéristiques techniques
Conforme à la norme DIN 582
Acier C22 selon norme NF-EN 10083-1-2 & 3

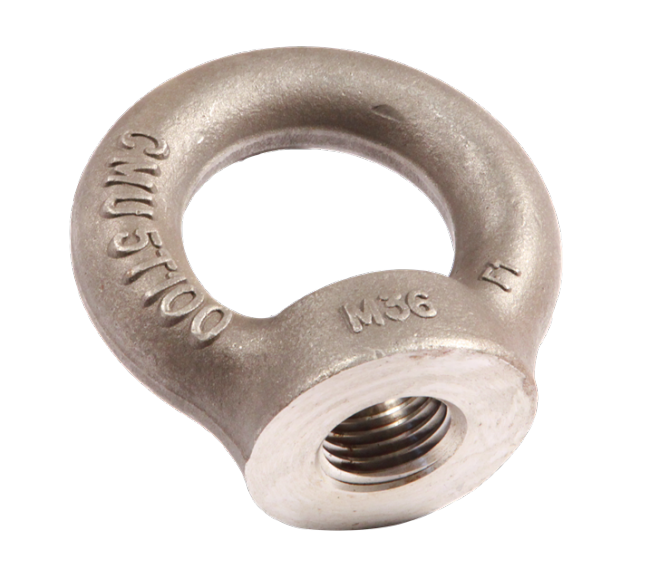

Anneau forgé, usiné
Marquage en relief
Coefficient de sécurité : 4
Notice d’utilisation et de maintenance : NU 14-01
Finition standard grenaillée. Zingage sur option.

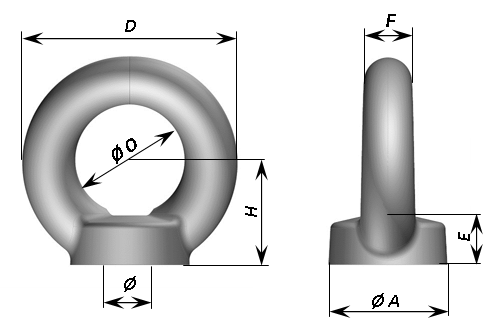

| Ø | ØA | E | Ø O | D | F | H | WLL - CMU en Kg | Poids en g | Référence | |
| Axial | Traverse at 45° | |||||||||
| M 6 | 16 | 8.5 | 16 | 28 | 5.5 | 17 | 70 | 35 | 40 | 21-03-006 |
| M 8 | 20 | 8.5 | 20 | 36 | 8 | 18 | 140 | 70 | 50 | 21-03-008 |
| M 10 | 25 | 10 | 25 | 45 | 10 | 22.5 | 230 | 115 | 90 | 21-03-010 |
| M 12 | 30 | 11 | 30 | 54 | 12 | 26 | 340 | 170 | 160 | 21-03-012 |
| M 14 | 35 | 13 | 35 | 63 | 14 | 30 | 490 | 245 | 200 | 21-03-014 |
| M 16 | 35 | 13 | 35 | 63 | 14 | 30 | 700 | 350 | 240 | 21-03-016 |
| M 18 | 40 | 16 | 40 | 72 | 16 | 35 | 900 | 450 | 360 | 21-03-018 |
| M 20 | 40 | 16 | 40 | 72 | 16 | 35 | 1 200 | 600 | 360 | 21-03-020 |
| M 22 | 50 | 20 | 50 | 90 | 20 | 45 | 1 500 | 750 | 720 | 21-03-022 |
| M 24 | 50 | 20 | 50 | 90 | 20 | 45 | 1 800 | 900 | 720 | 21-03-024 |
| M 27 | 65 | 25 | 60 | 108 | 24 | 55 | 2 500 | 1 250 | 1320 | 21-03-027 |
| M 30 | 65 | 25 | 60 | 108 | 24 | 55 | 3 600 | 1 800 | 1 320 | 21-03-030 |
| M 36 | 75 | 30 | 70 | 126 | 28 | 65 | 5 100 | 2 550 | 2 080 | 21-03-036 |
| M 42 | 85 | 35 | 80 | 144 | 32 | 75 | 7 000 | 3 500 | 3 110 | 21-03-042 |
| M 45 | 85 | 35 | 80 | 144 | 32 | 75 | 8 000 | 4 000 | 3 110 | 21-03-045 |
| M 48 | 100 | 40 | 90 | 166 | 38 | 85 | 8 600 | 4 300 | 5 020 | 21-03-048 |
| M 56 | 110 | 45 | 100 | 184 | 42 | 95 | 11 500 | 5 750 | 6 690 | 21-03-056 |
| M 64 | 120 | 50 | 110 | 206 | 48 | 105 | 16 000 | 8 000 | 9 300 | 21-03-064 |
| M 72 * 6 | 150 | 60 | 140 | 260 | 60 | 130 | 20 000 | 10 000 | 18 500 | 21-03-072 |
| M 80 * 6 | 170 | 70 | 160 | 296 | 68 | 150 | 28 000 | 14 000 | 27 300 | 21-03-080 |
| M 100 * 6 | 190 | 80 | 180 | 330 | 75 | 165 | 40 000 | 20 000 | 36 400 | 21-03-100 |
