Domaine d’utilisation
Caractéristiques techniques

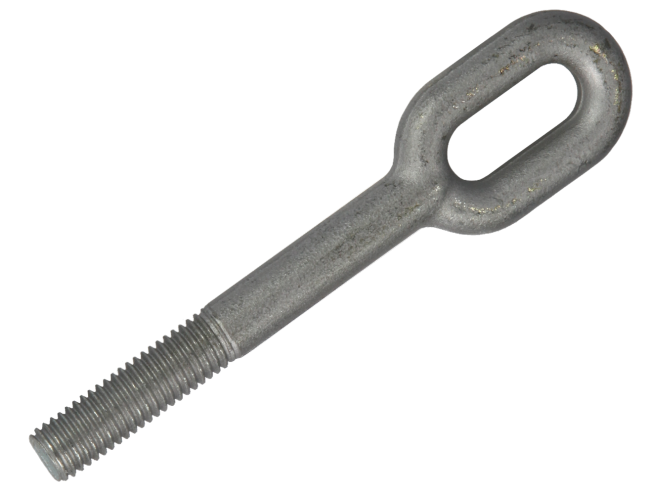

Finition standard: acier brut grenaillé.
Options :
Sur demande, la CMU est gravée au laser sur les pièces.

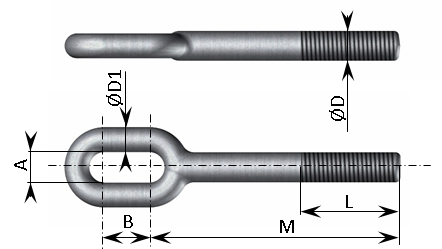

| Ø D | Matière | A | B | M | L maxi | Ø D1 | CMU en Kg | Charge de | Référence |
| rupture en kg | Colin Milas | ||||||||
| M8 | C22 | 8 | 10 | 70 | 50 | 6 | 300 | 1 200 | 48-03-008 |
| M10 | C22 | 10 | 13 | 92 | 65 | 8 | 500 | 2 000 | 48-03-010 |
| M12 | C22 | 12 | 18 | 101 | 80 | 10 | 750 | 3 000 | 48-03-012 |
| M14 | C22 | 14 | 20 | 136 | 105 | 12 | 1 100 | 4 400 | 48-03-014 |
| M16 | C22 | 16 | 23 | 160 | 135 | 14 | 1 500 | 6 000 | 48-03-016 |
| M18 | C22 | 18 | 26 | 170 | 140 | 14 | 1 900 | 7 600 | 48-03-018 |
| M20 | C22 | 20 | 29 | 180 | 140 | 16 | 2 500 | 10 000 | 48-03-020 |
| M24 | C22 | 24 | 31 | 210 | 170 | 18 | 3 500 | 14 000 | 48-03-024 |
| M27 | C22 | 27 | 33 | 225 | 185 | 20 | 5 000 | 20 000 | 48-03-027 |
| M30 | C22 | 30 | 37 | 240 | 190 | 22 | 6 000 | 24 000 | 48-03-030 |
| M 33 | C22 | 33 | 41 | 270 | 205 | 24 | 7 000 | 28 000 | 48-03-033 |
| M36 | C22 | 36 | 45 | 300 | 220 | 26 | 8 500 | 34 000 | 48-03-036 |
| M39 | C22 | 39 | 50 | 330 | 240 | 28 | 10 000 | 40 000 | 48-03-039 |
