Domaine d’utilisation
Caractéristiques techniques
En C22 selon norme NF-EN 10083
Finition : bruni ou (option) zingué blanc
Acier inoxydable A4 selon norme NF EN 10 088
Finition : passivé

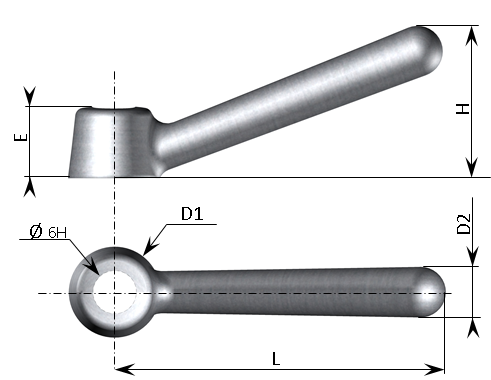

| Ø | D1 | D2 | L | E | H | Référence Colin Milas | |
| Version acier | Version acier inoxydable | ||||||
| M8 | 22 | 12 | 72 | 16 | 36 | 42-03-008 | 42-03-008-IN |
| M10 | 22 | 12 | 72 | 16 | 36 | 42-03-010 | 42-03-010-IN |
| M12 | 22 | 12 | 72 | 16 | 36 | 42-03-012 | 42-03-012-IN |
| M14 | 22 | 12 | 72 | 16 | 36 | 42-03-014 | 42-03-014-IN |
| M16 | 32 | 18 | 100 | 26 | 52 | 42-03-016 | 42-03-016-IN |
| M18 | 32 | 18 | 100 | 26 | 52 | 42-03-018 | 42-03-018-IN |
| M20 | 32 | 18 | 100 | 26 | 52 | 42-03-020 | 42-03-020-IN |
| M22 | 45 | 25 | 125 | 35 | 60 | 42-03-022 | 42-03-022-IN |
| M24 | 45 | 25 | 125 | 35 | 60 | 42-03-024 | 42-03-024-IN |
| M27 | 45 | 25 | 125 | 35 | 60 | 42-03-027 | 42-03-027-IN |
